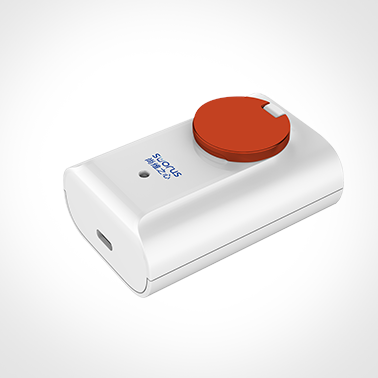

Product features
Based on the in vitro isothermal nucleic acid amplifification, this product is clinically only used with specifified IVD reagents (approved by the local medical device management department) for the qualitative detection of nucleic acid samples (DNA/RNA) derived from humans. The clinical samples include throat swabs and nasal swabs.
The assay results are for clinical reference only and shall not be used as the sole basis for diagnosing or excluding cases.
Pocket Molecular Detection: Break through the limitations of the central laboratory, self sampling and self-test, A portable testing kit for anywhere.
Early Monitoring: Advanced multiple fluorescent nucleic acid detection system, support multi-item detection.
Convenient Operation: Easy sampling,Connect the smartphone to check the results with one click.
Accurate Results: Strong specificity, effectively detect the target gene and reduce the risk of missed detection.
Wide Applicability: The open reagent platform supports a variety of testing items.
Data Traceability: Record experimental data and support big data storage, upload and export.
Feature | Specification |
Detection method | Real-time isothermal nucleic acid amplification |
Spectral channels | FAM,ROX |
Thermal system temperature range | 37℃-70℃ |
Dimensions(h*w*d) | 77mm x 52mm x 37mm |
Weight | About 75g |
Operating humidity | 10%RH-70%RH |
Operating temperature | 15℃-35℃ |
Input | 5VDC,2A |
Bluetooth | Bluetooth V4.2 BR/EDR and Bluetooth LE |
Temperature accuracy | ±0.5 ℃ |
Transportation and storage temperature | -20℃-+55℃ |
Transportation and storage humidity | 5%RH-80%RH |
