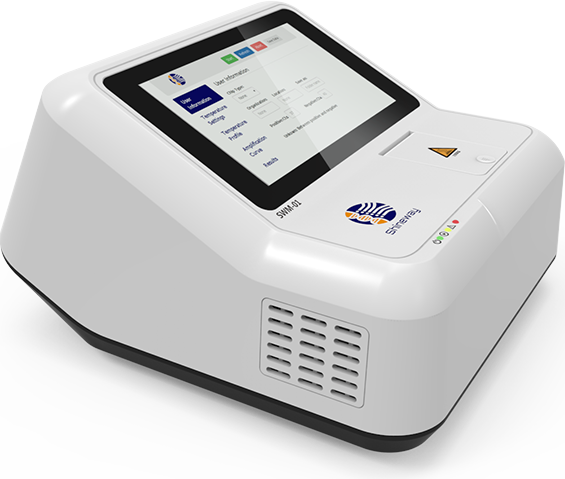

Nucleic acid amplification detection analyzer SWM-01
Nucleic acid amplification detection analyzer SWM-01

Product features

· 7.5-inch color touch screen, friendly and convenient control interface;

· Small size, portable, suitable for on-site testing;

· Less reagent consumption, saving testing cost;

· The shortest PCR reaction time can be shortened to 15 min;

· High detection sensitivity, the lowest detection limit can reach single molecule level;

· Brand-new detection optical path design, eliminate stray light interference, and further improve detection reliability;

· Using artificial intelligence image segmentation algorithm, accurate and efficient data processing system;

· Equipped with a large-capacity memory card, which can be connected to a wireless network for easy data storage and transmission

technical indicatorsreference number
Temperature control range40-105℃
Max heating rate>30℃/s
Max cooling rate>10℃/s
Heating rate≥1.5℃/s
Cooling rate≥1.5℃/s
Temperature accuracy±0.5℃
Temperature uniformity±1℃
Reaction volume range2-20μL
Fluorescence channelFAM
Power≤100VA
Use the power supplyAC 100-240V 50/60Hz
Overall quality2.5kg
